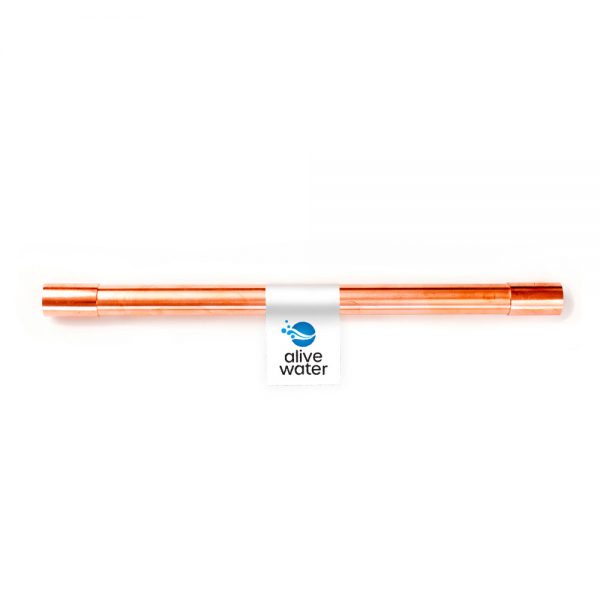

1 inch Whole House Standard Vortex Water Revitalizer

Are you ready to take your home to a higher level of hygiene, taste, and efficiency? Introducing the 1 inch Whole House Standard Vortex Water Revitalizer, designed to deliver revitalized water throughout your entire home or business! Installing this model on your main water line will give you an array of benefits, such as improved hygiene, better tasting water, softer and smoother skin and hair, reduced bacteria, efficient breakdown of wastewater, and a reduced environmental footprint.

All of these benefits come in a package that is made in Canada and comes with a 10-year warranty and 60-day money back guarantee, so you know you can trust the quality you’ll be receiving. Plus, installation instructions can be downloaded with ease here.

So don’t wait – get your 1 inch Whole House Standard Vortex Water Revitalizer today and experience revitalized water with confidence! Read further about The Whole House Vortex Water Revitalizer benefits here.

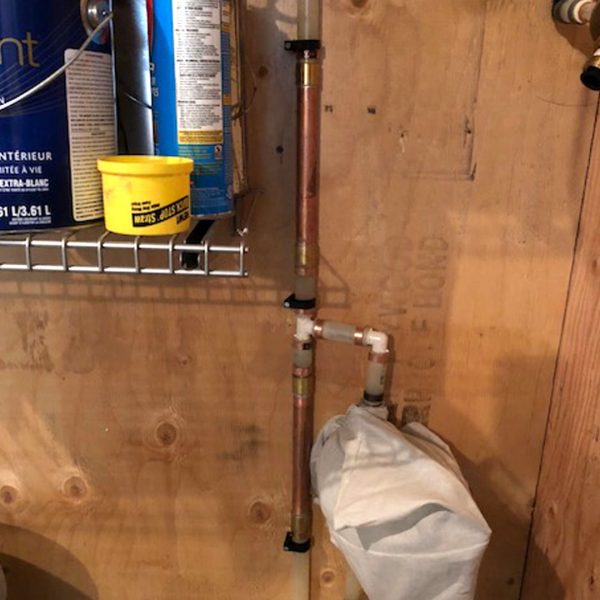

Installation Guide: Whole House Models

Installing The Vortex Water Revitalizer™ for your whole house is not difficult but we highly recommend hiring a plumber to install any of the Whole House Vortex Water Revitalizers.

IMPORTANT: always install your Whole House Vortex Water Revitalizer AFTER any other type of whole house water treatment system like a filter, reverse osmosis system or water softener, etc.

There are two main methods for installing a whole-house model, soldering or not soldering.

NON-SOLDERING – installation using Compression Fittings:

Compression fittings can be purchased from any hardware store, ensuring that the compression fittings are the same diameter as your Vortex Water Revitalizer and your pipe.

1. Cut out a piece of pipe, just slightly longer than the length of the Vortex Water Revitalizer.
2. Put the Vortex Water Revitalizer into place using the compression fittings.
3. Tighten the nuts.

This type of installation works perfectly and can take as little as 10 minutes to install.

SOLDERING Installation – Supplies Needed:

• No-lead solder (for domestic water lines)
• 00 Steel wool or Scotch green scrub pad
• Solder flux can
• Torch for soldering
• Miniature pipe cutter (Do not use a hacksaw)

Copper Pipe Installation

1. Remove copper couplings from both ends of the Vortex Water Revitalizer. Using steel wool or a scrub pad, clean about one and a half inches at each end of the Vortex Water Revitalizer until clean and free of the protective finish. Clean the inside of both ends of the couplings as well.
2. Cut a section of pipe out of the existing water line, 1/8“ longer than the Vortex Water Revitalizer
3. If your shut-off has a bleed screw on the side of it, open the bleed screw (once the water is off) and drain into a pail. Once you start to bleed the pipes, open all the taps in your house, flush the toilets and drain the outside hose taps. This will ensure that no water will flow into your new solder joint while soldering. If your shut-off does not have a bleed screw and cutting is the only way to bleed the lines, then all water that may be in the lines from the shut-off to the solder joint must be removed. Push a cloth a few inches into the pipe to absorb any remaining water.
4. Once the water has drained out of the lines and the pipe is cut, clean both exposed ends of pipe with the scrub pad or steel wool. If the pipes are strapped down, remove the straps for ease of assembly, before soldering.
5. The couplings have a small dimple inside which centers the coupling between the pipes to be soldered. If the pipes are rigid and cannot be moved, this dimple must be filed out without damaging the inside of the pipe. A small round file will work well. Once done, the coupling will slide completely over the pipe to allow for installation.
6. When all pipes and couplings are clean, flux must be applied to all metal surfaces to be soldered. When this has been done, assemble the Vortex Water Revitalizer and couplings, making sure couplings are centered on joint.
7. Soldering – Vertical and horizontal pipe settings Put the flame of the torch in the center of the coupling while running the end of the solder along the edge of the coupling. When solder melts, it will be drawn into the coupling. Run solder around the entire edge of the coupling. Repeat on the other side and then remove heat. Run solder once more over the first side soldered, let cool for 2 minutes and repeat the procedure on the other coupling. Do not bump the hot solder until the joint is cool. Do not overheat; use only enough heat to draw in solder!

Once soldering is complete, let cool for 5 minutes and turn main water on a quarter of the way. Let water run for 1 minute and close all taps in the house, check for leaks. If no leaks are found, turn water on fully and open hot water tank shut-offs.

Plastic Pipe Installation

If installing the Vortex Water Revitalizer onto plastic piping, you may purchase the adapter needed along with crimps and a rental tool for crimping from your local hardware store. Bring a sample of your pipe and the couplings provided in your order to purchase the appropriate adapter.

Be sure to use flux on all parts to be soldered. Solder couplings and adapters to the Vortex Water Revitalizer one end at a time allowing for a minute of cooling before proceeding to the other end.

Once soldered and cool, fit into place, cutting plastic pipe where required. Make sure to put crimps over the plastic pipe before putting the Vortex Water Revitalizer into place. Crimp and follow the procedure found above in reference to turning your water back on.

IMPORTANT: Run water from all taps throughout your home for 30 minutes to remove flux from your newly soldered lines and to flush your system of the old, non-revitalized water.

Please carefully read the more in-depth installation guide over here!
